Visual Inspiration

Starting inspiration began by looking around the area the product was being made for, the garden. The Bee Hive interested me as it is attractive, space saving and functional.

Concept Model

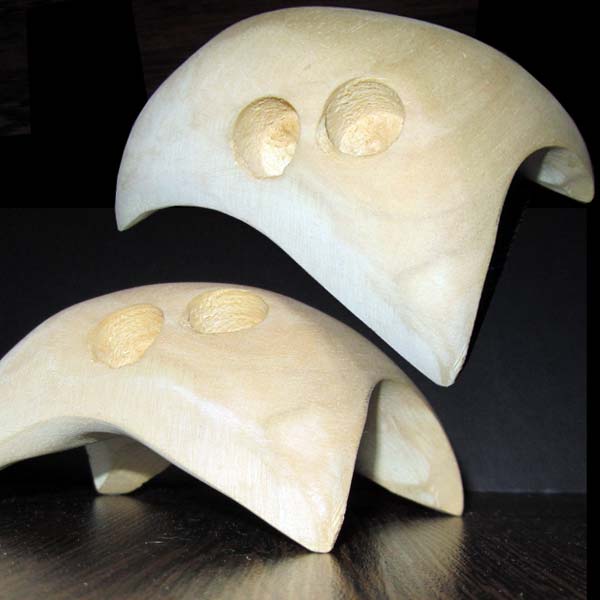

Jelutong basic concept to quickly produce the style and shape to further inspire the development.

Concept Model

Once made and developed a clean 1:5 scale model to represent my idea. Using a Circle variant honeycomb. Three legged table for stability on a likely uneven ground.

Concept Model

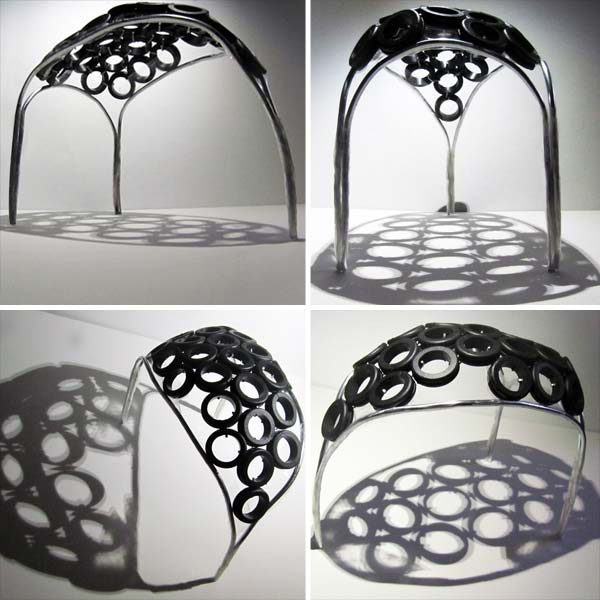

1:5 Scale model showing the tapered front to reduce weight on the front single leg. The possible shadows created for not only a functional garden product but as a garden sculpture.

3d Model

Visual scale model. The intended renewable material for the circular structure is Bamboo. Bamboo is claimed to grow 35-40 inches per 24-hour period.
MORE
3D

3d Model

Visual scale model. Minimal amount of tubular Steel finished in white is intended for the frame.

MORE
3D

3D Function

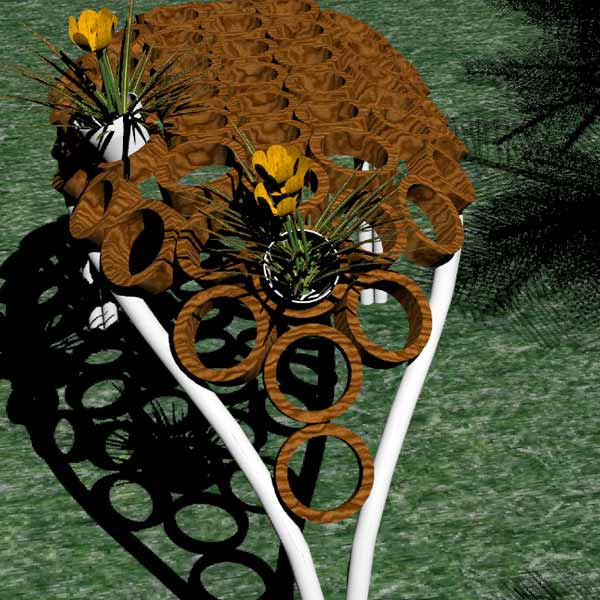

Concept is multi-seasonal use, when not being a functional table it creates a flowerbed feature.

MORE
3D

3D Function

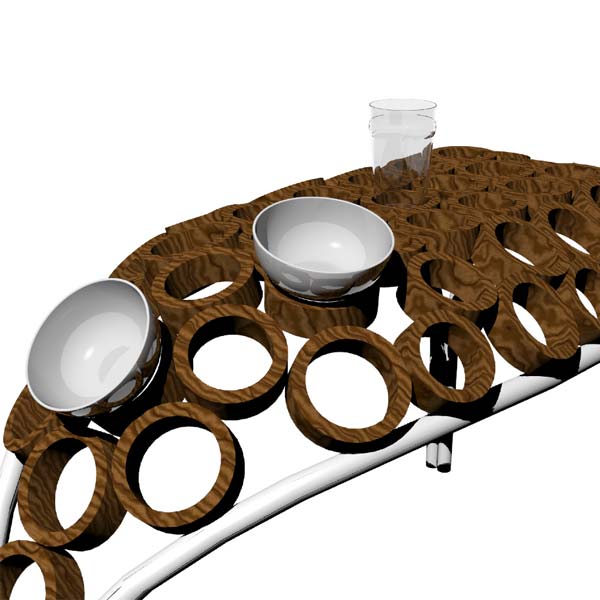

The size of the Bamboo upon testing easily holds bowls at an angle ideal for garden parties. Bamboo knuckles create a natural base that is used for the top to safely hold drinks.

3D Exploded

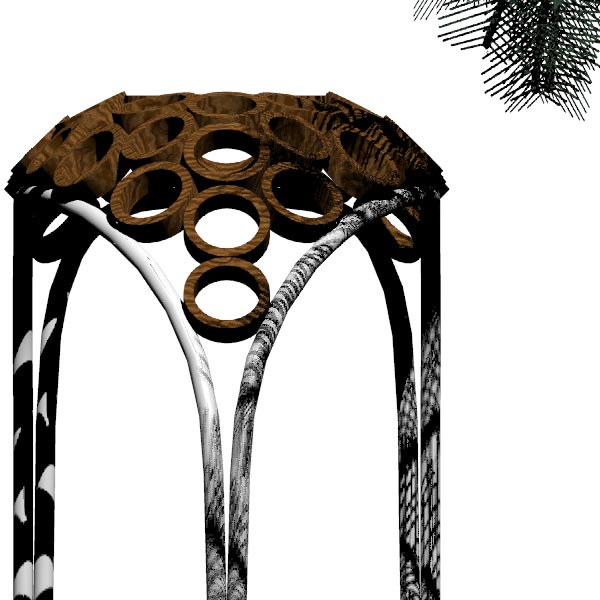

Exploded model showing the two materials.

MORE
3D

CAD

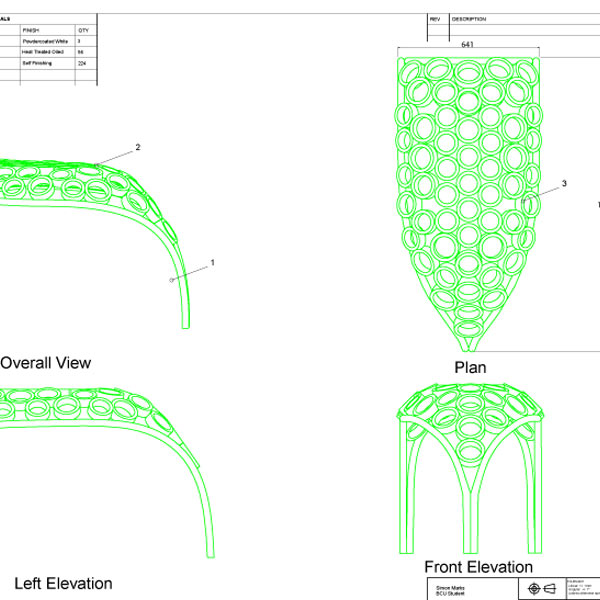

Detailed manufacturing drawings of the table.

MORE
CAD

Full Scale

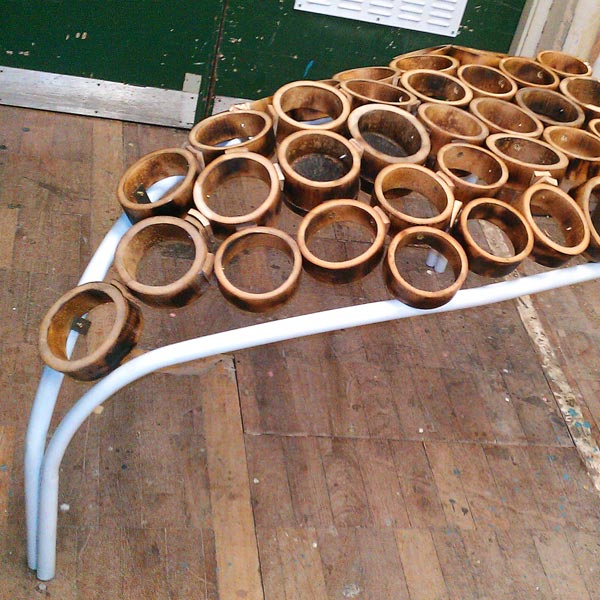

Full Scale model made by myself using tubular mild Steel and Bamboo.

MORE
MODELS

In Situ

Scale model super imposed onto a garden scene to represent design.

MORE
MODELS
